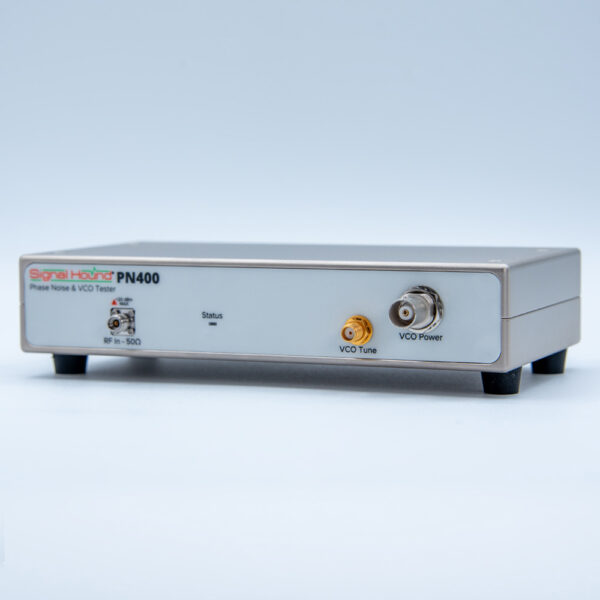

PN400 Phase Noise and VCO Test System

PN400 Data Sheet PN400-User-Manual Bringing impressive phase noise, VCO testing, and spectrum analysis measurements together in one powerful and precise workflow. The PN400 harnesses the power of two SM family spectrum analyzers to create Signal Hound’s Phase Noise and VCO Test System. Enabling cross-correlation unlocks phase noise floors 20-30 dB lower than the capabilities of a single SM200 / SM435. The integrated low noise variable power supply and tune voltage facilitate precise VCO testing and characterization that includes tuning sensitivity and VCO pushing. Achieve high-performance automated test results in diverse systems with the PN400. Signal Hound’s new Advanced Phase Noise Test Tool Kit unlocks enterprise-grade accuracy and cutting-edge features in your test and measurement environment. This feature-rich software kit is activated through Spike™ and requires a separate purchase with an annual renewal. PN400 Features: Phase noise testing and characterization VCO testing and characterization Production and manufacturing testing Source characterization System level debug All the power of Signal Hound’s spectrum analysis capabilities Required for PN400 Operation: PN400 Phase Noise & VCO Tester Advanced Phase Noise Test Tool Kit Software License Two (2) SM-spectrum analyzers *Mix and match SM200 or SM435 *SM spectrum analyzers not required if you already own Level up your PN400 experience See our entire line of cables and adapters for your PN400. See PN400 accessories Set up your PN400 Unlock high-performance phase noise measurements with Signal Hound's groundbreaking PN400. In this in-depth exploration, discover how to setup and pair the PN400 with two SM series devices and our Spike software to deliver comprehensive signal analysis and unparalleled phase noise measurement accuracy.License activation Learn about the simple process of activating a license in Spike, ensuring you harness unrivaled value through comprehensive signal analysis. What comes in the box?PN400 40 GHz Phase Noise & VCO TesterDownload card for Spike™ spectrum analysis software, Signal Hound API, and manualsUSB 2.0 A(m) to B(m) cableAC/DC Adapter, 30V, 30W w/Lemo
